Caratteristiche

Specificazioni

Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other

Condition: New

Ice Shape: Ice Cube

Voltage: 220V/380V 3P 50HZ/60HZ (customizable)

Power: 21.62kw

Dimension(L*W*H): 2600*2000*2200MM

Weight: 2000 KG

Warranty: 1.5 years

Key Selling Points: High-accuracy

Ice storage capacity: 800KG

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2022

Warranty of core components: 1.5 years

Core Components: Motor, Other, Pump, PLC, Dry filter, Expansion valve, Compressor

Compressor brand: Other, Frascold, Bitzer, Copeland, SECOP, HIGHLY, Refcomp, Hanbell

Application: Industrial/Commercial

Ice size(mm)(customizable): 22*22*22/29*29*22/30*30*22/45*45*22

Net weight(kg): 2000

Ice tray number: 18pcs

Insulation material: PU material

Refrigerant: R404a/R22

Ice Making Speed: 12-17 minutes / time

Evaporator: Copper plated nickel ice mold

Ice grid number: 19X21X15

Inlet pipe: PE material

After-sale service: Provide

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: wooden case

Supply Ability: 3000 Set/Sets per Month

Descrizione di prodotto

Products Description

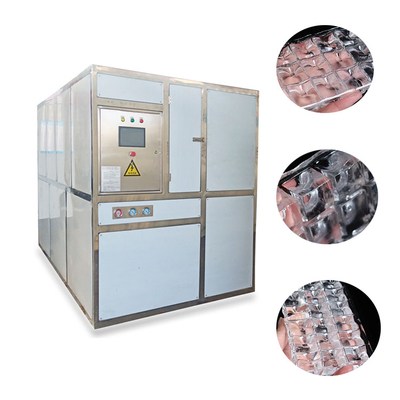

Model:ETD-C50

Ice Production: 5000kg/24h

Ice Storage: customized

Net Weight:2000kg

Compressor:

Bitzer/Frascold/Refcomp

Refrigerant: R404a/R507a/R22

Ice Size:

22*22*22mm or customized

Power Supply:

220V/380V/415V/460V 3P/50hz/60hz

Warranty:18months

Features

1.Sufficient output, up to 100% or more of rated output

2.Fully automatic control, the production process does not need to be on duty

3.The output can be customized at will, up to 10 tons

4.Non-standard voltages such as 220V/415V/460V3P can be customized

5.The machine has its own ice storage and ice delivery screw

6.Environmentally friendly R404a refrigerant

7.Air-cooled cooling can be customized, default water-cooled

Model	Output	Compressor Model	Ice Tray Number	Power supply	Machine Size (mm)	Machine Weight (kg)
ETD-C20	2000kg/24h	10P	6	380V/3P/50Hz	L1500W1400H2000	1300kg
ETD-C30	3000kg/24h	15P	10	380V/3P/50Hz	L2020×W1950×H2100	1400kg
ETD-C40	4000kg/24h	20P	14	380V/3P/50Hz	L2320×W1950×H2100	1500kg
ETD-C50	5000kg/24h	28P	18	380V/3P/50Hz	L2600W2000H2200	2000kg

Ice Detail

The following

specifications of ice can be customized

11x22x22mm

22x22x22mm

29x29x22mm

35x35x22mm

40x40x22mm

For other models,please consult with sales manager

You can choose any ice cube size you want

The Maximum Size is 45*45*22

Product acessories

Bitzer/Refcomp/Frascold Compressor

1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories; 2, the brand effect is good, the quality is more guaranteed; 3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

Food Grade Ice Tray

1.High-quality copper electroplating ice tray
2.Nickel plated is

storage/safe/hygienic
3.Strong corrosion resistance and good heat transfer effect

Danfoss Expansion valve

1.High-quality expansion valve in refrigeration industry, higher refrigeration efficiency and lower failure rate

2.Pure copper valve body, high thermal conductivity, good gasification effect, can effectively reduce the risk of compressor liquid hammer

3.Select internal balance expansion valve, more stable in small refrigeration system

Reliable Condenser

1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect; 2. The end cover is detachable, which is convenient for cleaning scale; 3. Precision machining, effectively preventing leakage; 4. It is very suitable for use in environments above 35°;

PLC+ Touch screen

1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield

4.More status indications to facilitate machine maintenance

Cooling Tower(free)

Cooling Pump(free)

Generator(Optional)

Dual Pressure Controller

The Electromagnetic Valve

Return Air Filter

Application

Cube ice machines are located in hotels, KTV, bars, banquet halls, western restaurants, fast food restaurants, convenience stores and cold drink shops where ice cubes are needed to meet every customer who needs ice pellets.

The cube ice produced by the cube ice machine is crystal clear, clean and hygienic; it is efficient, safe, energy-saving, durable and environmentally friendly, and is your first choice for ice making.

Collaboration Company

Company Profile

Jiangsu Eternity Import & Export Co.,Ltd is a enterprise that Product quality and sales service.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,Jiangsu Eternity Import & Export Co.,Ltd has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.

We have our OEM factory in Jiangsu, specializing in supplying all kinds of ice equipment. Eternity integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.

Client Partner

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.

Certificate

Eternity is a modern company with technical strength and innovation ability.

Client Feedback

FAQ

Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?
Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.
Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A
