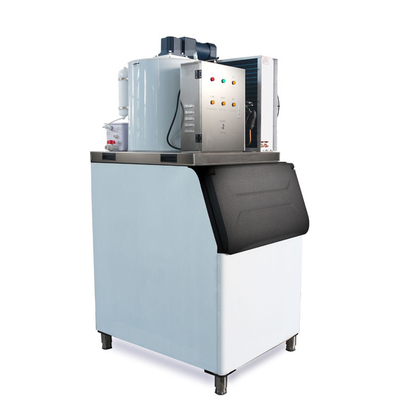

Commercial High Quality Flake Ice Maker 500 Kg/24 Hours Automatic Flake Ice Maker for Commercial Use

1 set
MOQ
Commercial High Quality Flake Ice Maker 500 Kg/24 Hours Automatic Flake Ice Maker for Commercial Use
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Hotels, Garment Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Condition: New
Ice Shape: Flake Ice
Weight: 220 KG
Warranty: 1.5 years
Key Selling Points: Automatic
Ice storage capacity: 300Kg
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Core Components: Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor brand: Frascold, Bitzer, Copeland, Refcomp
Application: Commercial
Model: ETD-F05
Rated output: 500kg/24h
Total power: 2.69kw
Rated current: 5.6A
Compressor power: 2.1kw
Refrigerant: R22/R404a/R507a
Cooling way: water/air cooling
Informazioni di base
Model Number: ETD-F05
Termini di pagamento e spedizione
Supply Ability: 500 Set/Sets per Month
Descrizione di prodotto
Machine support Customization ,18-month Warranty and Permanent Technical Support
Products Description


Model：ETD-F05
Ice Production：500kg/24h
Total Power：2.69kw
Ice Storage：300kg
Compressor：
Danfoss/Frascold/Refcomp
Refrigerant：R404a/R507a/R22
Net Weight：195kg
Power Supply：
220V/380V/415V/460V 3P/50hz/60hz
Warranty：18months

Features
1. Flake Ice: Dry, pure, powderless, not easy to block, flake ice thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.

2. Microcomputer Intelligent control: the flake ice machine is using PLC control system with world famous brand components.

3. Evaporator drum: Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running
at the lowest power consumption.

Model
Output
Total Power
(kw)
Power supply
Machine Size
(mm)
Cooling way
Ice Storage
ETD-F03
300kg/24h
1.76
220V/1P/50Hz
800*780*655
Air Cooling
100kg
ETD-F05
500kg/24h
2.69
380V/3P/50Hz
1310*890*805
Air Cooling
300kg
ETD-F10
1T/24h
4.37
380V/3P/50Hz
1220*900*905
Air Cooling
400kg
ETD-F15
1.5T/24h
7.08
380V/3P/50Hz
1310*970*985
Air Cooling
400kg
ETD-F20
  2T/24h
8.6
380V/3P/50Hz
1500*1095*1050
Air Cooling
500kg
ETD-F25
2.5T/24h
9.1
380V/3P/50Hz
1500*1095*1200
Air Cooling







Customized
ETD-F30
3T/24h
14.66
380V/3P/50Hz
1750*1190*1200
Air Cooling
ETD-F50
5T/24h
23.12
380V/3P/50Hz
1750*1550*1610
Water Cooling
ETD-F80
8T/24h
31.5
380V/3P/50Hz
2530*1830*1695
Water Cooling
ETD-F100
10T/24h
45.5
380V/3P/50Hz
2530*1830*1835
Water Cooling
ETD-F150
15T/24h
64
380V/3P/50Hz
3100*2090*1865
Water Cooling
ETD-F200
20T/24h
75.8
380V/3P/50Hz
3695*2090*2235
Water Cooling
ETD-F250
25T/24h
97.8
380V/3P/50Hz
3695*2090*2485
Water Cooling
ETD-F300
30T/24h
115.7
380V/3P/50Hz
3880*2120*2595
Water Cooling
ETD-F350
35T/24h
135
380V/3P/50Hz
4100*2200*2600
Water Cooling
ETD-F400
40T/24h
154
380V/3P/50Hz
4200*2300*2700
Water Cooling
Ice Detail




Ice Thickness :1.5-2.5 mm
Ice Temperature:-11℃
Ice Shape:Flake Ice
Product acessories

Copeland-USA Compressor
1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories; 2, the brand effect is good, the quality is more guaranteed; 3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.
              Main shaft
1.High-quality in refrigeration industry, higher refrigeration efficiency and lower failure rate
2.Pure copper valve body, high thermal conductivity, good gasification effect, can effectively reduce the risk of compressor liquid hammer



          SUS304 Evaporator
1.Use stainless steel material for good grade
2. The style of inside machine ensures constant running at the lowest power
consumption
3.It is easy to discharge oil; High heat transfer efficiency


      Reliable Ice Storage
1.According to the output of the flake ice machine, the size of the ice storage can be customized
2. Internal material keeps flake ice from melting for a long time
3.Cold room can also be customized, if you need, please contact our sales manager

Fully equipped with Schneider Switches
1. The panel of the socket is exquisite, flat and beautiful, simple and elegant
2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness
3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials

Cooling Tower
Cooling Pump
Pressure controller
Condensing fan
Solenoid valve
Dry Filter
Product Technical Map
Application
Suitable industry：
1. Seafood showing in the hotel, vegetables fresh-keeping, special packaging for the special food;
2. Seafood showing and transporting in the supermarket, , vegetable fresh-keeping and transporting;
3. The dietary supplementation of food factory, Raw material storing, food proceeding;
4. The lives stock proceeding ,fresh keeping ,freezing and transporting after killing in the meat processing plant ;
Collaboration Company
Company Profile
Jiangsu Eternity Import & Export Co.,Ltd is a enterprise that Product quality and sales service.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,Jiangsu Eternity Import & Export Co.,Ltd has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.
We have our OEM factory in Jiangsu, specializing in supplying all kinds of ice equipment. Eternity integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.
Client Partner
We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
Certificate
Eternity is a modern company with technical strength and innovation ability.
