Casa /Prodotti/macchina per ghiaccio commerciale/Commercial Heavy Duty Square Cube Cube Ice Maker Laboratory Ice Maker Price Commercial Heavy Duty Ice Maker

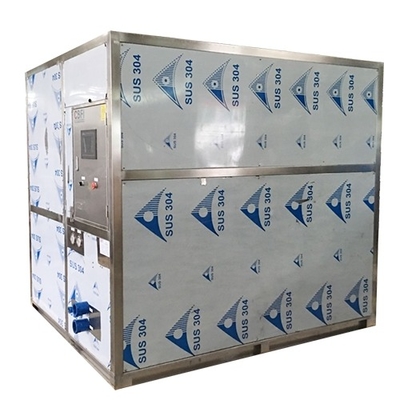

Commercial Heavy Duty Square Cube Cube Ice Maker Laboratory Ice Maker Price Commercial Heavy Duty Ice Maker

1.0 set
MOQ
Commercial Heavy Duty Square Cube Cube Ice Maker Laboratory Ice Maker Price Commercial Heavy Duty Ice Maker
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Hotels, Food & Beverage Factory, Restaurant, Food Shop, Energy & Mining, Food & Beverage Shops
Condition: New
Ice Shape: tube ice
Voltage: 380V/3P/50Hz
Power: 4.34 kw
Dimension(L*W*H): 1800 1000 1700mm
Weight: 3 KG
Warranty: 1 Year
Key Selling Points: High Productivity
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Compressor brand: Bitzer, Copeland, Bock
Application: Commercial
Condensation: Water cooled condenser/Air cooled condenser
After Warranty: Video technical support, Online support, Spare parts
After-sales service: Overseas Machinery Service, field installation, training
tube ice length: 30mm to 50mm
PLC Program: Germany brand Siemens
Capacity: 1-80ton per day
Certificazione: CE
Informazioni di base
Certificazione: CE
Termini di pagamento e spedizione
Packaging Details: Ice Tube machine 1. Standard wooden case. 2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine come into use, customer only need prepare power for the machine. 4. All required components
Supply Ability: 30 Set/Sets per Month
Descrizione di prodotto
Product Description
Specification
3 tons per day large capacity cube ice machine for hotels & restaurants paremeters
Model Parameters
CV 1000
CV 2000
CV 3000
CV 5000
CV 10000
CV 20000
Daily output (T/24 h)
1
2
3
5
10
20
Compressor Power
4.34 kw
7.88 kw
10.58 kw
21 kw
42 kw
73.5 kw
Fan Power of Cooling Tower
0.18 kw
0.37 kw
0.56 kw
0.75 kw
1.5 kw
2.2 kw
Cooling Pump Power
1.1 kw
1.5 kw
1.5 kw
2.2 kw
4 kw
5.5 kw

Unit Size
L (mm)
1800
1630
1980
2890
5730
7100
W (mm)
1000
1600
1630
1780
1780
2250
H (mm)
1700
1706
1860
1860
2130
2300
Unit N.W. (kg)
800
1000
1200
1600
3000
5000
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm. 2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling. 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icemedal, there will be further notice, if there any technical change.
